Cutting-Edge Bluetooth Infrared Thermometer Manufacturer for OEM and ODM Partners
- group name
- High Temperature Measuring Equipment
- Min Order
- 1 piece
- brand name
- GrillMeater, Cooking Probe Manufacturer
- model
- SH233
- Nearest port for product export
- Shenzhen
- Delivery clauses under the trade mode
- FOB, CIF, EXW
- Acceptable payment methods
- T/T, MoneyGram, PayPal
- update time
- Sun, 12 May 2024 10:03:49 GMT
Paramtents
Bluetooth Infrared Thermometer Yes
Bluetooth Infrared Temperature Measuring Meter Gourmet cooking
Application Scenario wireless monitoring of high temperature
Temperature Probe Logger Yes
Packging & Delivery
- 14cm x8cm x4cm
-
Min Order1 piece
Briefing
Top-notch Bluetooth Infrared Thermometer Maker for OEM and ODM Partners,Top-notch Bluetooth Infrared Thermometer Maker for OEM and ODM Partners
Detailed
Bluetooth Infrared Thermometer
Bluetooth Infrared Temperature Measuring Meter/Bluetooth High Temperature Logger/Wireless Infrared Thermometer

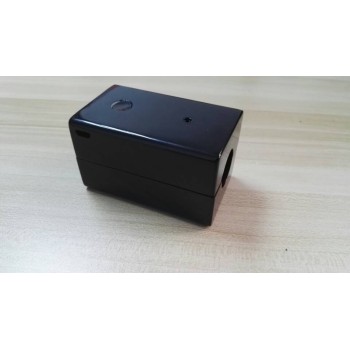

SH233C innovatively integrates Bluetooth technology and infrared temperature measurement technology, and is a novel and fashionable infrared thermometer. Users can download the app application software TempView to monitor and record temperature measurement data. It is widely used in industrial HVAC equipment, electronic manufacturing device inspection, food and drug temperature measurement, scientific experiments, industrial agriculture, and other fields.
SH233 is an infrared thermometer with Bluetooth communication function. The thermometer has a wide measurement range, a ranging ratio of 12:1, fast response time, Bluetooth transmission, and data storage (tentative) functions. It is used in conjunction with smart terminals such as mobile phones. Users can observe and store infrared temperature measurement data with their own app software Dabster or with a set of FMG's App TempView. It can be widely used in industrial HVAC equipment, electronic manufacturing device inspection, food and drug temperature measurement, etc.
Setup:
1. Fully Charge the Dabster ‘Black Box’ unit for 1-2 hours prior to first use. Once fully charged, push the power button down to turn ‘On’. Green LED Light will blink on and off when charged, but not yet connected.
2. Download TempView App
TECHNICAL SPECS:
Temperature Range: 32 to 1112°F (0 to 600° C)
Accuracy: ± 2% or ± 1.4℃ from 0℃ to 600℃
Response Time: < 0.8 seconds
Emissivity: Adjustable In App (0.1 to 1.0) Fixed: 0.93
Operating Temperature: 32 to 122°F (0 to 50°C)
Storage Temperature: -4 to 122°F (-20 to 50°C)
Power Supply: Rechargable lithium-ion battery (pre-installed) 1000 mAh 3.7v
Standard accessories: USB-C charge cord
Weight/dimensions: 45mmx45mmx75mm
Distance-to-Spot-Ratio*: 12:1
*The farther the target surface, the larger the test area is, as the distance between the test object and SH233 ‘Black Box’ or other devcies increases, the size of the area being measured also increases.
Below is a sample using the formula used to calculate the distance-to-spot-ratio:
Distance-to-Spot-Ratio x Test Object Size in Inches = Maximum Measure
Distance in Inches
e.g.
12:1 x 2″ = maximum measure distance of 24″.
Bluetooth Infrared Thermometer Parameter
TEMPERATURE RANGE | FUNCTION | PACKING | ||||||
Measurement range: -50~600 ℃, ± 2%, Working environment temperature: -20~70 ℃ | Emissivity: 0.10-1.00 (default 0.95) | Product weight:80g | ||||||
Spectral range: 8um~14um | Object distance ratio D/S: 12:1 | Charging indicator light, battery low voltage report | ||||||
Recording interval: 60-600 seconds | Product size:L68xW40xH40mm | Packing list: 1pc Thermometer ,1pc User Manaul | ||||||
Response time: 500ms | Storage capacity: 4096 sets of data, | Laser indication of the measured object target | ||||||
Using the mobile app: TempView/Dabster | Compatible with Bluetooth BLE4.2/BLE5.0 | Wireless communication distance: ≥ 30 meters |
Bluetooth Infrared Thermometer Applications
- Industrial HVAC equipment, electronic manufacturing device inspection, food and drug temperature measurement, scientific experiments, and high-temperature measurement in the industrial and agricultural fields
TempView App download
1. Download TempView App form Apple Sotre or Google Play Store; open your mobile bluetooth & search the probe.
2. Setting the temperature unit ; Input the High & Low Temp range, select Alarm Type.
3. See the Temperature changes & all temperature data is rceorded.
4. Export the Temperature data to Whatapps, wehchat, emails etc..
FAQ:
Q:
Why is there a significant temperature measurement error in the use of the SH233 Bluetooth infrared thermometer?
Why is there a significant temperature measurement error in the use of the SH233 Bluetooth infrared thermometer?
A: It is necessary to use the wireless infrared thermometer SH233 correctly, and the distance between the temperature measurement point and the instrument lens should not exceed 50cm.
Q:
Can you customize the Bluetooth infrared thermometer app application software for customers?
Can you customize the Bluetooth infrared thermometer app application software for customers?
A: Sure, we need the client to provide the UI file and design requirements document for the app.
Q: What is the highest measured temperature? Can higher temperature measurement products be customized?
A:The current maximum measurement temperature range of SH233 is 600 ℃, which can be customized for customers up to 1000 ℃
